Description

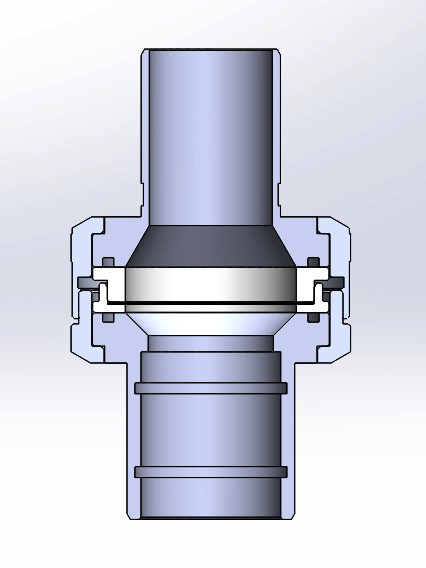

Model 10150 is a user-configurable weatherproof filter cassette holder for ambient air particulate sampling applications, and is ideal for use in custom ambient air sampling inlet component stacks. It is designed to hold a single EPA-spec 47mm filter cassette such as our model FC47 series. Knurled bands on the universal upper and lower threaded clamp collars allow the holder assembly to be easily opened to replace the filter cassette between sampling events. A wide range of sockets and tenons of various sizes are available, and the modular design allows any of these parts to be installed in the inlet or outlet position in the assembly, enabling complete configuration flexibility.

Extra inlet/outlet parts can also be purchased individually under the listed Alaric part numbers:

• 10296 Open Face (for direct filter cassette exposure on inlet end).
• 10297 1.246 inch outside diameter tenon (EPA 16.7 L/min size).
• 10298 1.25 inch inside diameter socket (EPA 16.7 L/min size).
• 10299 16mm outside diameter tenon (common metric size).
• 10300 16mm inside diameter socket (common metric size).
• 10301 ½ inch outside diameter tenon (common 2 L/min or compression fitting size).
• 10302 ½ inch inside diameter socket (common 2 L/min size).
• 10303 0.560 inch outside diameter tenon (compatible with some 5 L/min air samplers).
• 10304 .525-16 threaded male stud (compatible with some 5 L/min air samplers).
• 10305 ½ NPT female pipe thread, with hose barb.
• 10317 90-Degree ¼ NPT female pipe thread, with mounting screw holes. (For outlet end).
